Home/Categories/Interchangeable Plug Power Adapters/30W / 36W / 65W Max

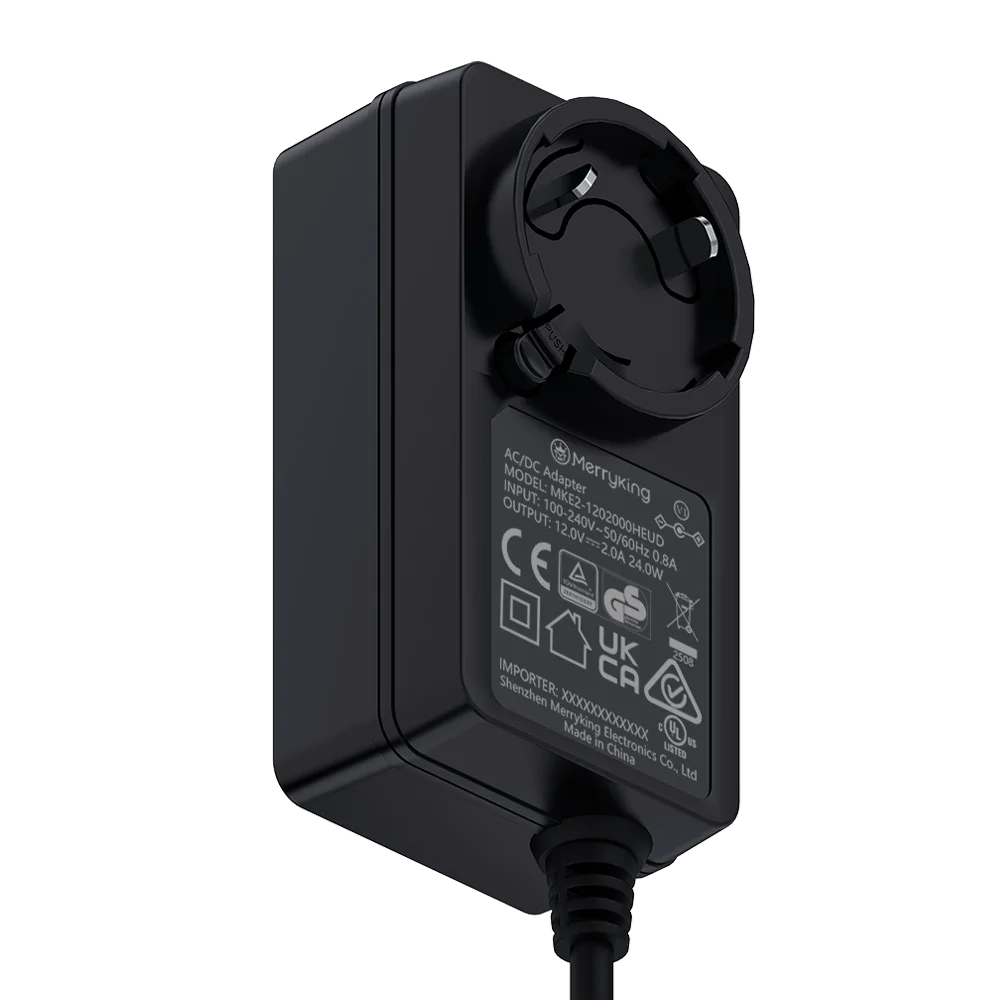

Interchangeable Plug Power Adapters 30W / 36W / 65W Max - MKF-D — image 1

Interchangeable Plug Power Adapters 30W / 36W / 65W Max - MKF-D

Product Variants

Specifications

input: 100-240V~50/60Hz 0.5A
output: 3-48Vdc, 10-2500mA
AC plug: EU/KC/UK/AU/US/JP/AR/CN
DC plug: Barrel Plug / Other Options
DC wire: Round / Flat
Length: 1.2M, 1.5M, 2M, etc
certifications: UL, CE, FCC, GS, KC, KCC, UKCA, cUL, ETL, SAA, C-Tick, RCM, PSE, S-mark, CCC, EAC, CB, BIS, PSB, BSMI

Additional Specifications

Universal input			100-240V~50/60Hz
Input current			0.8A Max
General outputs
5V 6A		9V 4A		13V 3A		19V 2A		29V 2A
5V 7A		9V 4.5A		13V 4A		19V 2.1A		29.4V 2A
5V 8A		9V 5A		13V 5A		19V 2.5A		30V 1.5A
5.5V 6A		9V 6A		13.5V 3A		19V 3A		30V 2A
5.5V 8A		9V 7A		13.5V 4A		19V 3.42A		33.6V 1.8A
6V 6A		9.5V 4A		14V 3A		20V 2A		35V 1.5A
6V 7A		9.5V 6A		14V 4A		20V 2.5A		35V 1.8A
6V 8A		10V 4A		15V 3A		20V 3A		36V 1.5A
7.5V 5A		10V 5A		15V 3.5A		21V 3A		36V 1.8A
7.5V 6A		12V 3.3A		15V 4A		22V 2A		40V 1A
8V 4A		12V 3.5A		16V 3A		22V 2.5A		40V 1.5A
8V 5A		12V 4A		16V 4A		22V 2.9A		42V 1A
8V 6A		12V 4.5A		16.8V 3A		24V 2A		42V 1.5A
8V 7A		12V 4.8A		16.8V 3.5A		24V 2.2A		45V 1A
8.4V 4A		12V 5A		18V 2.2A		24V 2.5A		46.2V 1A
8.4V 5A		12.6V 3A		18V 2.5A		24V 2.7A		48V 1A
8.4V 6A		12.6V 4A		18V 3A		25V 2A		48V 1.25A
8.4V 7A		12.6V 4.5A		18V 3.5A		25.2V 2A		48V 1.35A
DC wire
Flat cable / round cable					L=1M / 1.5M / 2M...
Support For Custom SPEC
