GaN PD Chargers 18W / 20W / 25W Max - MK-P201

MK-P201 is a 20W-rated GaN PD charger for compatible devices. Available output depends on the selected port version, the negotiated charging profile and whether multiple outputs are in use.

MK-P201: The series lists these port alternatives: USB-C, USB-A+USB-C. Choose one exact configuration; the list does not mean every port alternative is included on the same unit.

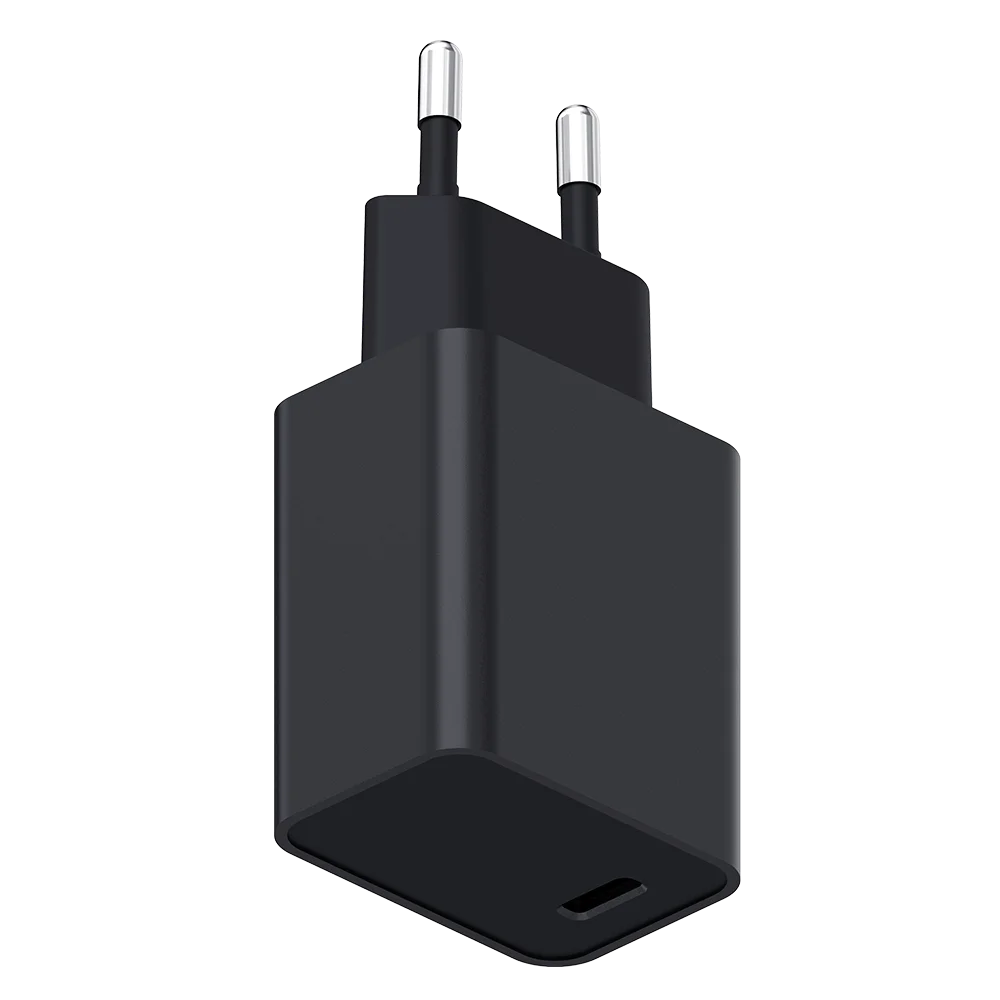

MK-P201: The illustrated single USB-C version provides up to 20W. A USB-A+USB-C alternative is listed, but its simultaneous-output limits are not provided. Please request the MK-P201-specific power-sharing table.

The available MK-P201 information does not give a full PDO table, PPS range or QC revision. Please provide the required voltage/current profile and device model. A wattage or GaN label alone does not establish a particular protocol, 12V mode or PPS capability.

MK-P201 can be checked against your exact device model, charging protocol and cable. Please share the required input profile and whether other ports will be used at the same time. We cannot promise a device-specific charging speed or branded fast-charge mode from the total wattage alone.

For MK-P201, select the correct connector ends and a cable rated for the required voltage, current and charging protocol. Optional USB cable lengths of 1m and 1.5m are listed. Please confirm the cable current rating and any e-marker requirement for the selected high-current mode. Cable inclusion must be specified in the quotation; the product image does not define the supplied cable bundle.

Please send the required voltage/current profiles, PPS range if applicable, device negotiation method and total power budget for MK-P201. OEM/ODM support is listed, but a new protocol profile requires engineering review, sample validation and confirmation of the applicable documentation.

The MK-P201 information does not promise uninterrupted output during port insertion or removal. For a multiport configuration, please specify whether power renegotiation, brief resets or voltage dips are acceptable, and validate the required port combinations with the actual devices.

MK-P201 lists 100-240V AC input, 50/60Hz. Select the correct plug and approved configuration for the destination market. The AC input range does not make its DC output voltage adjustable.

MK-P201 lists regional plug options: AU, CN, EU, UK, US, JP, AR. Specify the exact country and plug geometry, including round-pin diameter where relevant. Multiple regional options do not establish interchangeable or folding pins; confirm the required construction before ordering.

The illustrated MK-P201 enclosure is 43 x 39 x 26.5 mm. Confirm the dimension reference, tolerances, plug projection and cable-exit clearance against the approved drawing. These reference dimensions do not establish the final packed size or weight.

The MK-P201 listing mentions CE, GS, KC, UKCA, UL/CUL, ETL, FCC, SAA, PSE, CCC, EAC, CB, BIS and PSB. Availability must be checked for the exact model suffix, output, plug and destination market. Please tell us the required documents so our team can confirm the applicable certificate/report numbers and matching label. The general list does not confirm every mark on every variant.

Exact values and test conditions are not provided in the available MK-P201 sheet. Please specify your ripple/noise limit, input voltage, load, measurement bandwidth, standby-power target and required protection behavior. Our team must confirm them with the model-specific specification or test report before making a performance commitment.

Please provide the ambient temperature, ventilation, load profile, operating duration and acoustic acceptance conditions for MK-P201. Continuous-load capability, derating, case temperature and noise need confirmation for the chosen configuration and installation. We cannot promise a temperature limit or noise-free operation without the agreed test conditions.

The available MK-P201 information does not state an IP rating or outdoor-use approval. Please specify the required ingress-protection level and environment for review. A waterproof connector, cable treatment or moisture-resistant carton does not establish a waterproof adapter enclosure.

Yes, OEM and ODM are listed for MK-P201. Please send the logo artwork, size, placement and preferred marking method for review. Printing, laser marking, labels and neutral-brand requests depend on the approved housing and order configuration. Required rating and traceability information must remain consistent with the approved product.

A color or finish change can be requested for MK-P201, but availability, resin, tooling, MOQ, cost and lead time need confirmation. The listed standard-order MOQ does not automatically apply to a custom color. Please send the color reference and quantity per color; a sample color is not a confirmed mass-production commitment.

Packaging customization can be reviewed for MK-P201. Specify retail box or bulk packing, included cords/cables/plug heads, logo artwork, manual languages, barcode/FNSKU, carton quantity and any QR code. Please approve the packaging artwork and packing list before production; fees and MOQ are quoted for the selected design.

The listed MOQ for MK-P201 is 100 pieces. Samples, trial orders, custom colors, packaging and mixed output/plug versions need separate confirmation. Please provide the quantity per configuration; a combined order total does not automatically satisfy the MOQ for every SKU or custom material.

The reference price listed for MK-P201 is USD 2.54 / piece. This is not a final order quotation. The confirmed price depends on the output and plug version, cables/accessories, logo, packaging, required documentation and quantity. Please request a current quotation that states what is included and the shipping/tax terms.

The listed lead time for MK-P201 is 20-40 days. The actual schedule depends on the approved specification, artwork, sample status, material availability and order quantity. Please confirm the production start point and whether transit time is included in the quotation; a smaller order is not automatically ready to ship.

Please request a sample of MK-P201 in the intended voltage/current, plug, connector and cable configuration, with the desired branding if relevant. Sample availability, quantity, charges and dispatch time require confirmation. Test it with your actual device before approving the production specification.

The supplied MK-P201 product information lists a 3 years warranty. Please confirm the start date, coverage of the adapter and bundled cables, exclusions and claim/remedy process in the order terms. The product-specific order agreement should be used when other general or historical warranty periods differ.

Please send the full MK-P201 configuration: destination market, application, output or charging profiles, AC plug/inlet, output connector and polarity/pinout where applicable, cable details, quantity per version, required reports, logo and packaging. Approve the final specification, drawing, sample, label and packing list before mass production. Any later change needs a new written confirmation.
