Medical Grade Power Adapters 15W / 30W Max - MKB2-WxxD — image 1

Medical Grade Power Adapters 15W / 30W Max - MKB2-WxxD

Product Variants

Specifications

input
100-240V~50/60Hz
output
3-48Vdc, 10-4200mA
AC plug
EU/KC/UK/AU/US/JP/AR/CN
DC plug
Barrel Plug / Other Options / USB-A
certifications
UL, CE, FCC, GS, KC, KCC, UKCA, cUL, ETL, SAA, C-Tick, RCM, PSE, S-mark, CCC, EAC, CB, BIS, PSB, BSMI

Worldwide Use

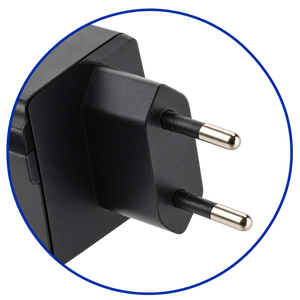

EU plug
EU

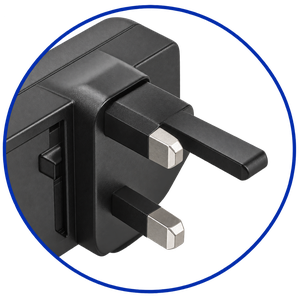

UK plug
UK

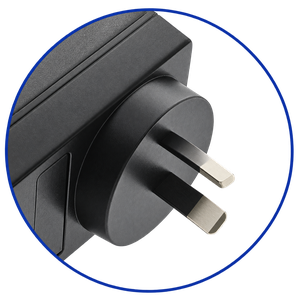

AU plug
AU

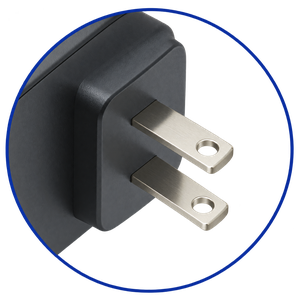

US plug
US

Specification Details

MKB2-WxxD specifications
ParameterValue
Input100-240V~50/60Hz
Output3-48Vdc, 10-4200mA
AC PlugInterchangeable AC plugs, EU/KC/UK/AU/US/JP/AR/CN available
DC Plug / PortBarrel Plug / Other Options / USB-A
DC WireRound / Flat, length: 1.2M, 1.5M, 2M, etc.
CertificationCE, GS, KC, KCC, UKCA, UL cUL, ETL, FCC, SAA, C-Tick, RCM, PSE, S-mark, CCC, EAC, CB, BIS, PSB, BSMI
Output Voltage
5V 0.5A5V 1A5V 1.2A5V 1.5A5V 2A5V 2.1A5V 2.5A6V 1A6V 1.2A6V 1.5A6V 2A9V 1A9V 1.3A12V 1A24V 0.5A
Power adapter OEM customization

Plug List of Output Cable

Plug TypeSpecificationOutline / Drawing
Stripped & TinnedNC
Barrel Type5.5x2.1
5.5x2.5
4.75x1.7
4.0x1.7
3.5x1.35
2.35x0.7
6.3x3.0
Barrel Type6.5x1.4
Barrel Type Right Angle5.5x2.1
5.5x2.5
4.75x1.7
4.0x1.7
3.5x1.35
2.35x0.7
6.3x3.0
6.5x1.4
Din (male)3Pin
4Pin
5Pin(180)
5Pin(240)
6Pin
7Pin
8Pin
Plug TypeSpecificationOutline / Drawing
Power-Mini Din (male)3Pin (Molding)
4Pin (Molding)
3Pin (Assembly/Lock Type)
4Pin (Assembly/Lock Type)
Interchangeable Connector2Pin
2Pin
3Pin
Switchcraft Locking TypeA:5.5, B:2.5 C:0.375"(9.52mm)
A:5.5, B:2.5 C:0.475"(12.06mm)
A:5.5, B:2.1 C:0.375"(9.52mm)
A:5.5, B:2.1 C:0.475"(12.06mm)
DC plug with ScrewA:5.5, B:2.1/2.5, C:7.5
A:5.5, B:2.1/2.5, C:10.1
Cigarette Lighter-
USB Type C-

Order-to-Delivery Process

Order-to-delivery process step 01
Order-to-delivery process step 02
Order-to-delivery process step 03

1. Inquiry Received

Initial client consultation with our sales team; we confirm project requirements.

2. Engineering Review

Our engineers analyze the proposed product specifications.

3. Sampling & Quotation

Sales discusses prototyping and pricing with the client.

Order-to-delivery process step 04
Order-to-delivery process step 05
Order-to-delivery process step 06

4. Order Confirmed

Client approves samples, passes testing, and places the order.

5. Pilot Run & Packaging Design

Small-batch trial production begins, alongside custom packaging development.

6. Mass Production

Full-scale manufacturing starts after pilot run approval.

Order-to-delivery process step 07
Order-to-delivery process step 08
Order-to-delivery process step 09

7. Quality Inspection

Comprehensive QC checks during and after production.

8. Packaging

Finished products are packed according to client requirements.

9. Shipping

Goods are container-loaded and dispatched for delivery.
