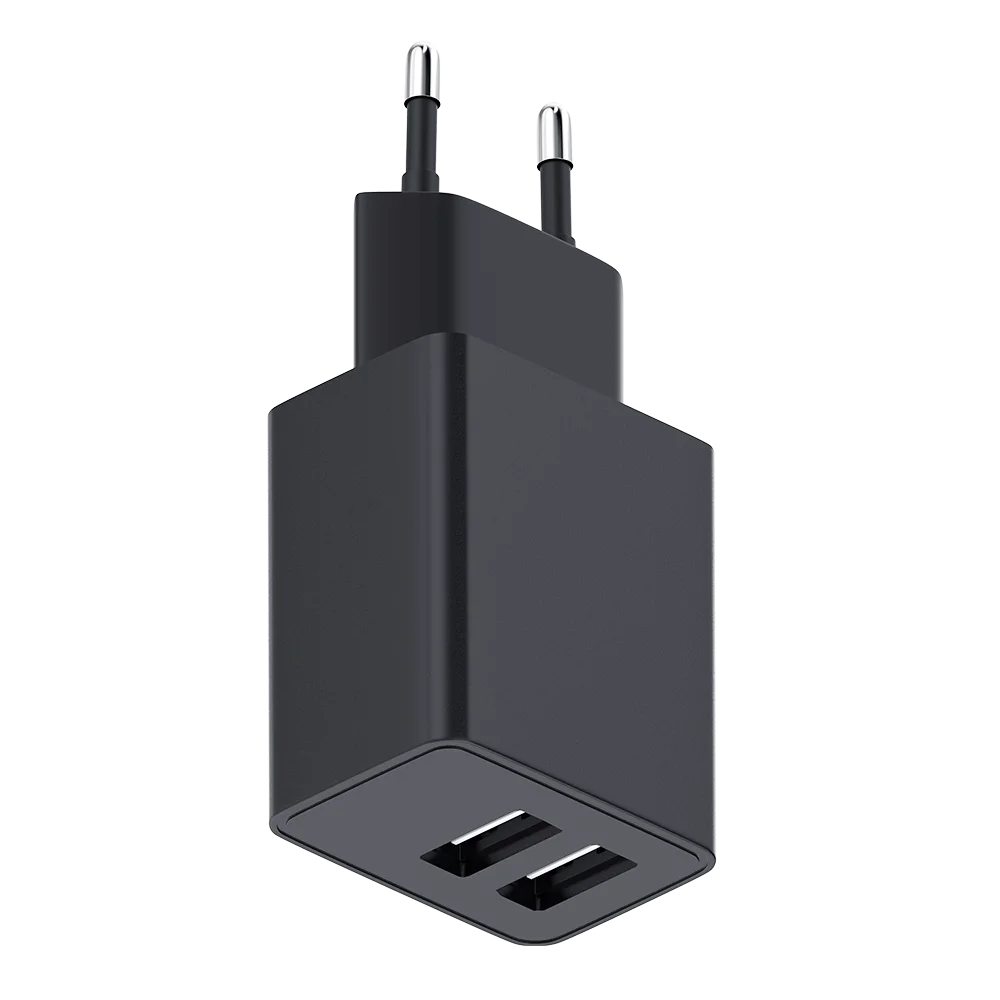

USB Chargers 15W Max (MKC Series) - MKC-VxxT
InquiryProduct Variants
Specifications
- input
- 100-240V~50/60Hz 0.5A
- output
- 3-48Vdc, 10-2500mA
- AC plug
- EU/KC/UK/AU/US/JP/AR/CN
- DC plug
- Barrel Plug / Other Options
- DC wire
- Round / Flat
- Length
- 1.2M, 1.5M, 2M, etc
- certifications
- UL, CE, FCC, GS, KC, KCC, UKCA, cUL, ETL, SAA, C-Tick, RCM, PSE, S-mark, CCC, EAC, CB, BIS, PSB, BSMI
Additional Specifications
| Universal input | 100-240V~50/60Hz | ||||||||
| Input current | 0.4A Max | ||||||||
| General outputs | |||||||||
| 5V 0.5A | 5V 0.8A | 5V 1A | 5V 1.2A | 5V 1.5A | |||||
| 5V 2A | 5V 2.1A | 5V 2.4A | 5V 2.5A | 5V 3A | |||||
| USB cable | |||||||||
| Flat cable / round cable | L=1M / 1.5M / 2M... | ||||||||
| Support For Custom SPEC | |||||||||
| Input | 100-240V | ||||||||
| Working Frequency | 50-60Hz | ||||||||
| Output | 5Vdc, 10~2500mA | ||||||||
| AC Plug | US/EU/UK/AU/JP/KR/AR/CN Available | ||||||||
| DC Plug | USB-A/USB-C/USB-A*2 | ||||||||
| Certifications | PSE UL cUL FCC CE CB GS UKCA ETL SAA C-Tick RCM CCC KC KCC S-mark EAC BSMI PSB | ||||||||
| Size | 43.5*39*26.8mm | ||||||||
| Protection | SCP, OVP, OCP, OTP | ||||||||
| MTBF | 50000Hrs | ||||||||
| Warranty | 3 Years | ||||||||
