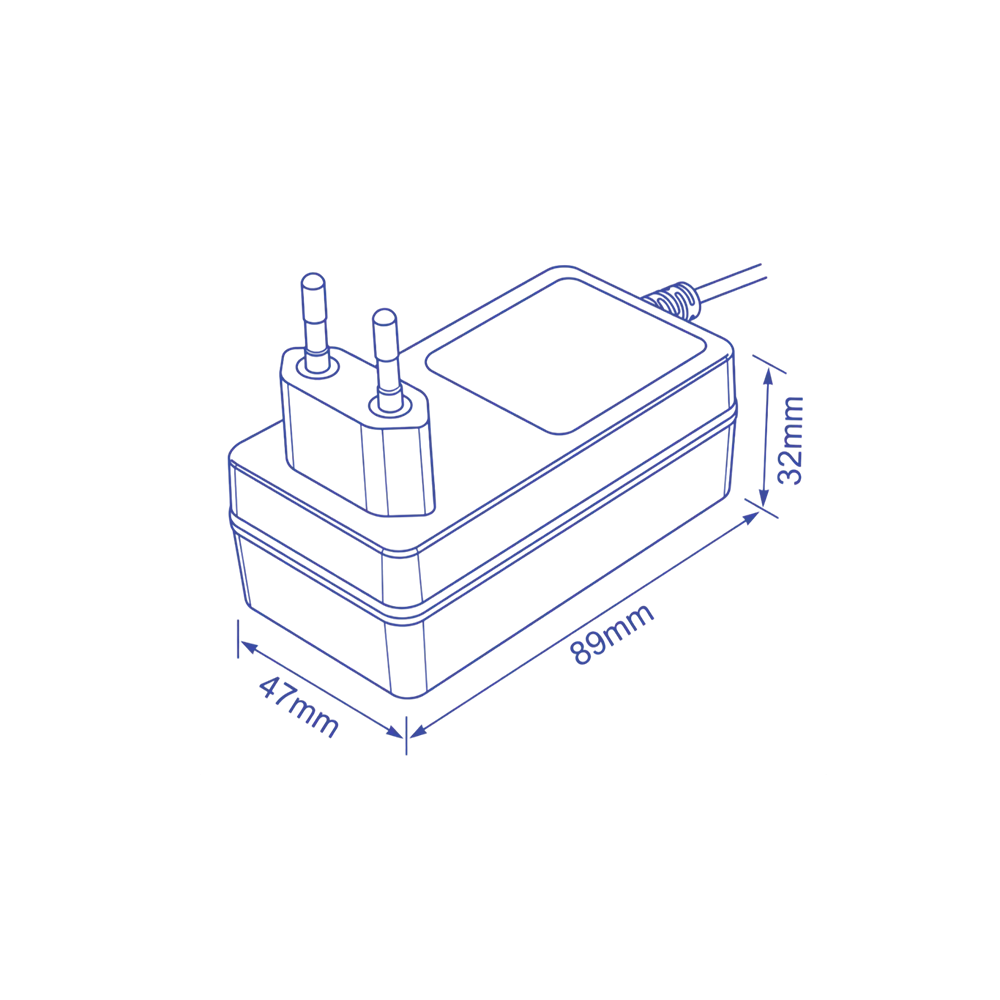

Wall-Mounted Type Adapters 65W Max - MKF-H
InquiryProduct Variants
Specifications
- input
- 100-240V~50/60Hz 0.5A
- output
- 3-48Vdc, 10-2500mA
- AC plug
- EU/KC/UK/AU/US/JP/AR/CN
- DC plug
- Barrel Plug / Other Options
- DC wire
- Round / Flat
- Length
- 1.2M, 1.5M, 2M, etc
- certifications
- UL, CE, FCC, GS, KC, KCC, UKCA, cUL, ETL, SAA, C-Tick, RCM, PSE, S-mark, CCC, EAC, CB, BIS, PSB, BSMI
Plug List of Output Cable
| Plug Type | Specification | Outline / Drawing |
|---|---|---|
| Stripped & Tinned | NC | |
| Barrel Type | 5.5x2.1 | |
| 5.5x2.5 | ||
| 4.75x1.7 | ||
| 4.0x1.7 | ||
| 3.5x1.35 | ||
| 2.35x0.7 | ||
| 6.3x3.0 | ||
| Barrel Type | 6.5x1.4 | |
| Barrel Type Right Angle | 5.5x2.1 | |
| 5.5x2.5 | ||
| 4.75x1.7 | ||
| 4.0x1.7 | ||
| 3.5x1.35 | ||
| 2.35x0.7 | ||
| 6.3x3.0 | ||
| 6.5x1.4 | ||
| Din (male) | 3Pin | |
| 4Pin | ||
| 5Pin(180) | ||
| 5Pin(240) | ||
| 6Pin | ||
| 7Pin | ||
| 8Pin |
| Plug Type | Specification | Outline / Drawing |
|---|---|---|
| Power-Mini Din (male) | 3Pin (Molding) | |
| 4Pin (Molding) | ||
| 3Pin (Assembly/Lock Type) | ||
| 4Pin (Assembly/Lock Type) | ||
| Interchangeable Connector | 2Pin | |
| 2Pin | ||
| 3Pin | ||
| Switchcraft Locking Type | A:5.5, B:2.5 C:0.375"(9.52mm) | |
| A:5.5, B:2.5 C:0.475"(12.06mm) | ||
| A:5.5, B:2.1 C:0.375"(9.52mm) | ||
| A:5.5, B:2.1 C:0.475"(12.06mm) | ||
| DC plug with Screw | A:5.5, B:2.1/2.5, C:7.5 | |
| A:5.5, B:2.1/2.5, C:10.1 | ||
| Cigarette Lighter | - | |
| USB Type C | - |
Order-to-Delivery Process



1. Inquiry Received
Initial client consultation with our sales team; we confirm project requirements.
2. Engineering Review
Our engineers analyze the proposed product specifications.
3. Sampling & Quotation
Sales discusses prototyping and pricing with the client.



4. Order Confirmed
Client approves samples, passes testing, and places the order.
5. Pilot Run & Packaging Design
Small-batch trial production begins, alongside custom packaging development.
6. Mass Production
Full-scale manufacturing starts after pilot run approval.



7. Quality Inspection
Comprehensive QC checks during and after production.
8. Packaging
Finished products are packed according to client requirements.
9. Shipping
Goods are container-loaded and dispatched for delivery.
